Blickle Locking Swivel Caster 5" [LER-PO 125R-FI]

BLICKLE
$55.30
Be the first to leave a review
SKU LER-PO 125R-FI
Weight 0.82 LBS
Stock
Brake Yes
Caster Type Swivel
Wheel (non-marking) Yes

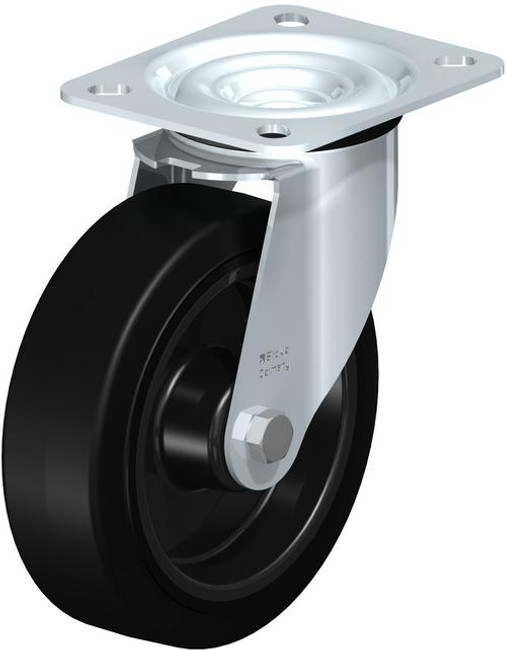

Pressed steel swivel caster with bolt hole fitting and 'stop-fix' brake, Nylon wheel



Weight (KG): 0.823

Wheel Ø (D) [mm]: 125

Tire width (T2) [mm]: 40

Load capacity [kg]: 150

Bearing type: roller bearing

Axle bore Ø (d) [mm]: -

Hub length (T1) [mm]: -

Total height [mm]: 150

Plate size [mm]: 70

Bolt hole spacing [mm]: -

Bolt hole Ø [mm]: -

Offset swivel caster [mm]: 38

Stem Ø [mm]: -

Stem Legnth [mm]: -

Tread & tire hardness: 70° Shore D

Tread: Brackets: Made of pressed steel, with double ball bearing in the swivel head, strong central kingpin, ball predection by the special top plate and ball disc design. The special Blickle dynamic riveting process of the swivel head results in minimal swivel head play and smooth rolling characteristics with an increased service life achieved by the work hardening of the ball race grooves. Bolted wheel axle. Zinc-plated, blue-passivated, Cr6-free. Wheel: Made of high-quality, impact-resistant nylon. Colour: natural white. Wheel centre/rim: - Colour: natural white. Chemical characteristics: High chemical resistance to many aggressive substances. Operating temperature: -25° C to +80° C. At ambient temperatures above +35° C the load capacity is reduced. Maintenance-free under standard conditions.

Wheel Center: nylon

Temperature Rating: (-)25° C to +80° C. At ambient temperatures above +35° C the load capacity is reduced.

Brake:
Yes
Caster Type:
Swivel
Wheel (non-marking):
Yes
Yes
Swivel
Yes
